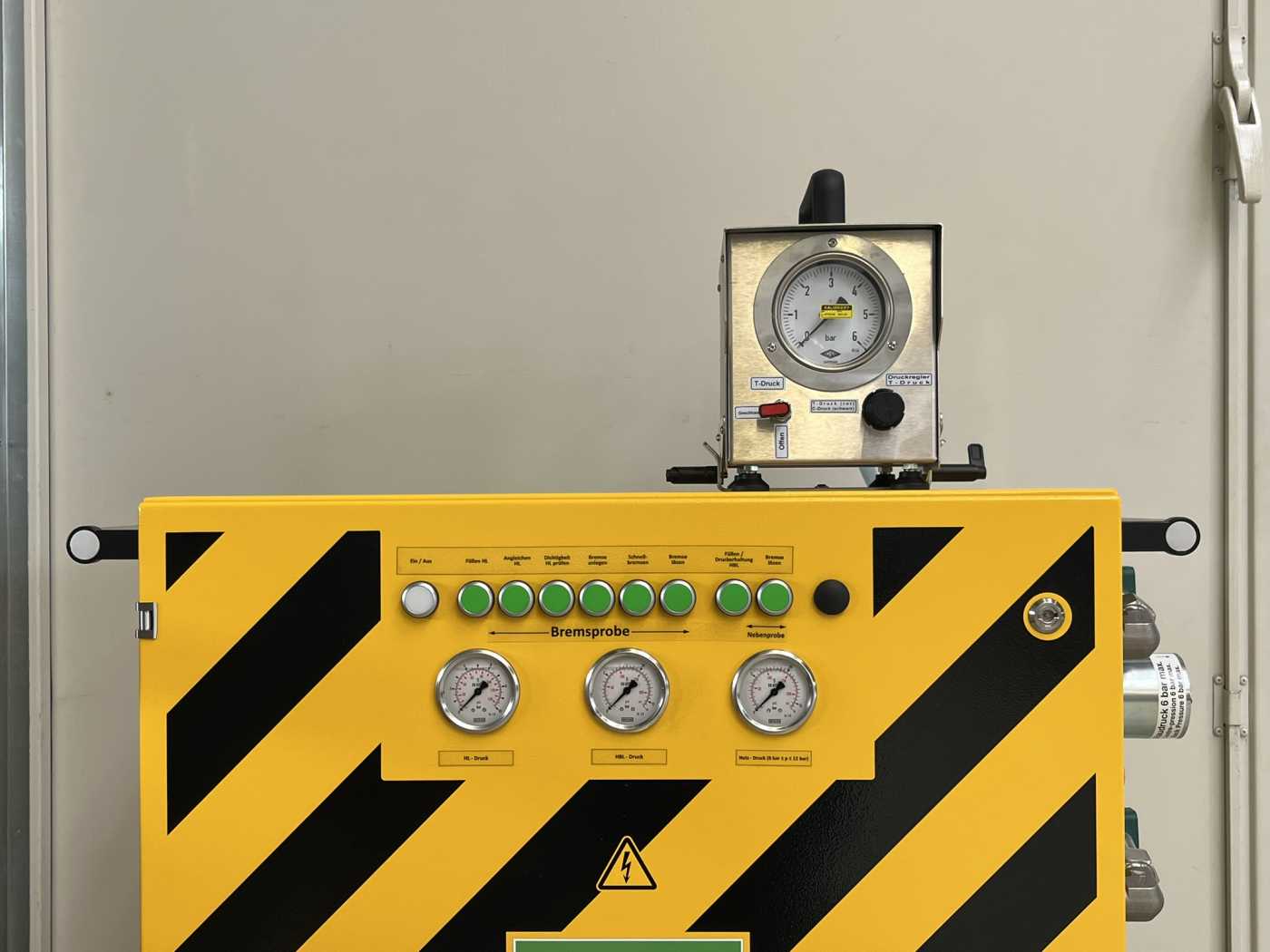

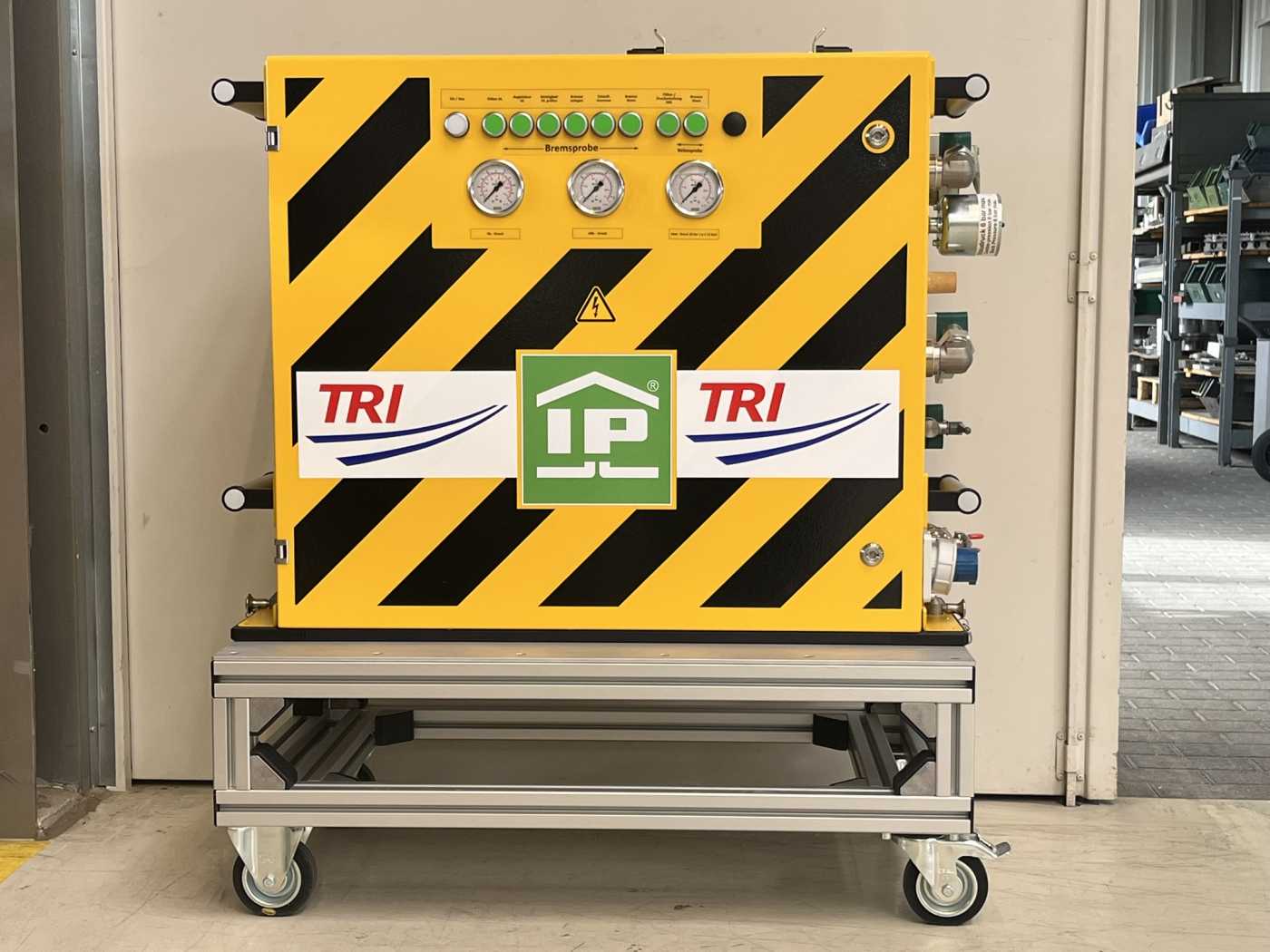

Mobile brake testing unit “BPG Rz 3”

The mobile solution for brake testing on passenger coaches

The mobile Brake testing unit “BPG Rz3” developed by IP RailEquipment is the universal, mobile solution for brake testing on passenger coaches – independent of a locomotive. It enables the coach inspector or maintenance personnel to carry out the entire braking process safely, in a standardized manner and with digital documentation.

The mobile Brake testing unit “BPG Rz3” is used to fill, test and maintain the pressure of all freight and passenger train brakes approved in the UIC area. Thanks to its design, it can be transported quickly and used flexibly – ideal for temporary locations, maintenance work or emergencies.

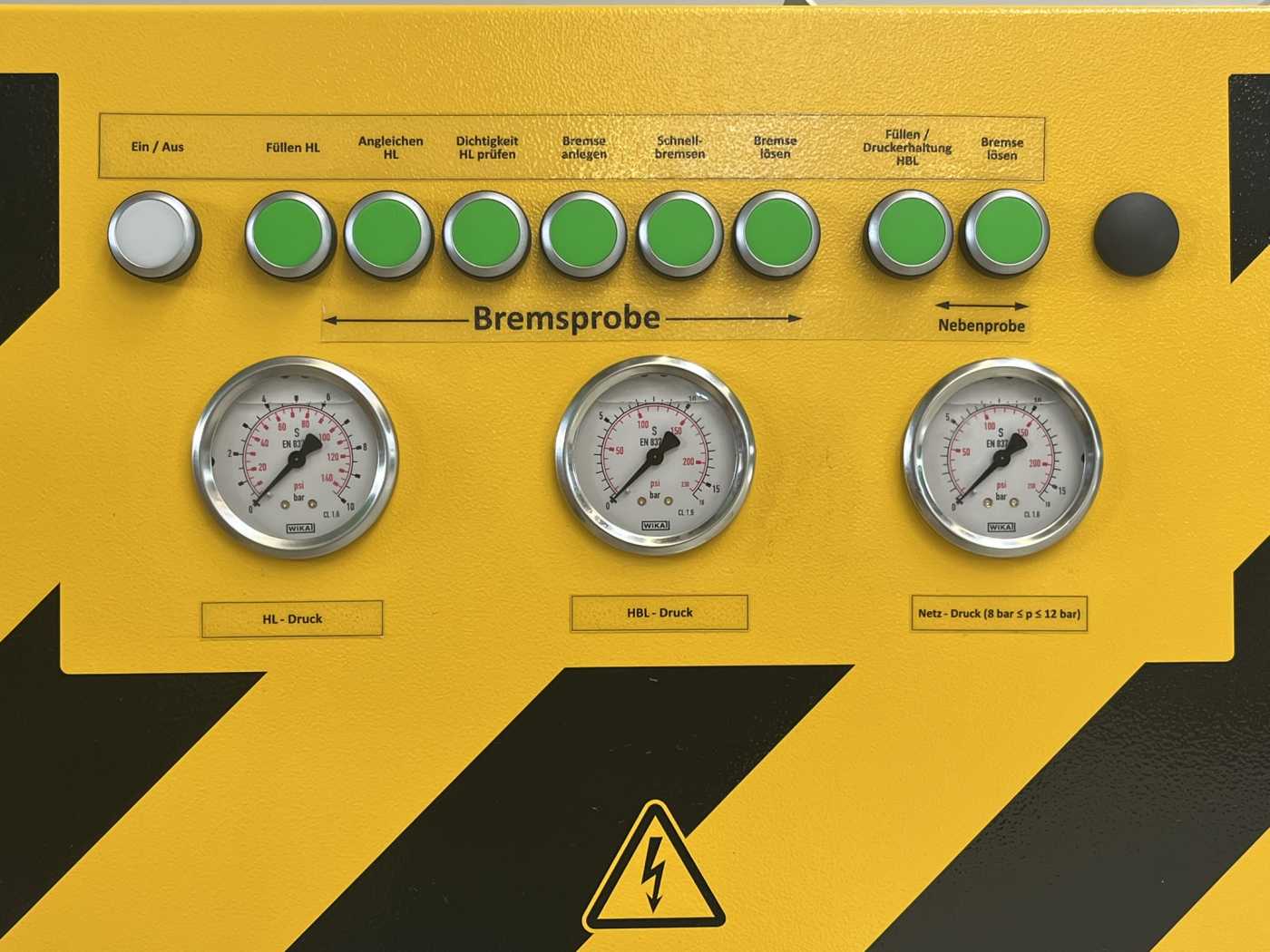

Mobile Brake testing unit “BPG Rz3”– maximum flexibility for efficient brake tests:

Filling the train
Leak test of the main air line of the train
Adjusting the train
Releasing the brakes of the train, applying the brakes of the train
Maintaining pressure in the train
Filling the main air reservoir line, leak testing the main air reservoir line

Technical Data mobile BPG Rz 3

Dimensions (L x H x W)	974 mm x 1314 mm x 500 mm
Weight	Approx. 80 kg
Electrical connections	230 V AC / 50 Hz
Control voltage	24 V DC
Input possibility	max. 300 W (without working socket)
Structural mains fuse	6 … 16 A
Incoming pressure of compressed air	6 - 12 bar
Air quality	In accordance with compressed air quality classes 3/3/3 according to ISO 8573-1 (2010)
Compressed air connections	External thread M36x2
Permitted ambient temperature	-10°C to +60°C
Pressure in main line	Max. 5,3 bar (adjustment process)
Accuracy of pressure check	+/- 0.03 bar
Filling time of main line	Approx. 5-7 min.
