Adjustable support base for rails by IP RailEquipment

The use of adjustable support bases for rails enables simple and precise adjustment of measuring tracks and elevated tracks in railway workshops. As concrete structures permanently alter the track position over time due to shrinkage and subsidence, and the crane rail fastenings used wear out, the track position had to be corrected regularly until now. This was time-consuming and cost-intensive with the old fastening systems.

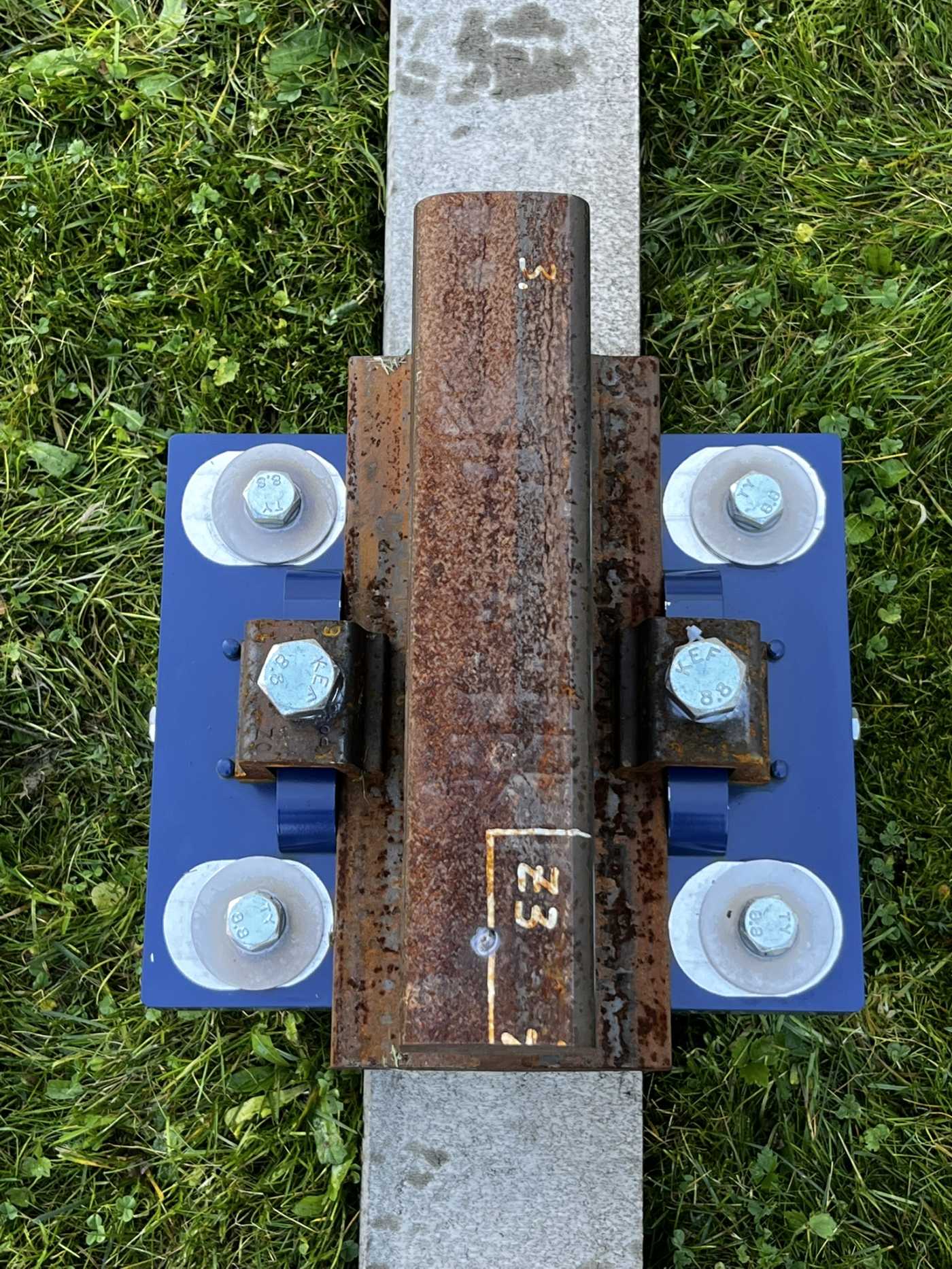

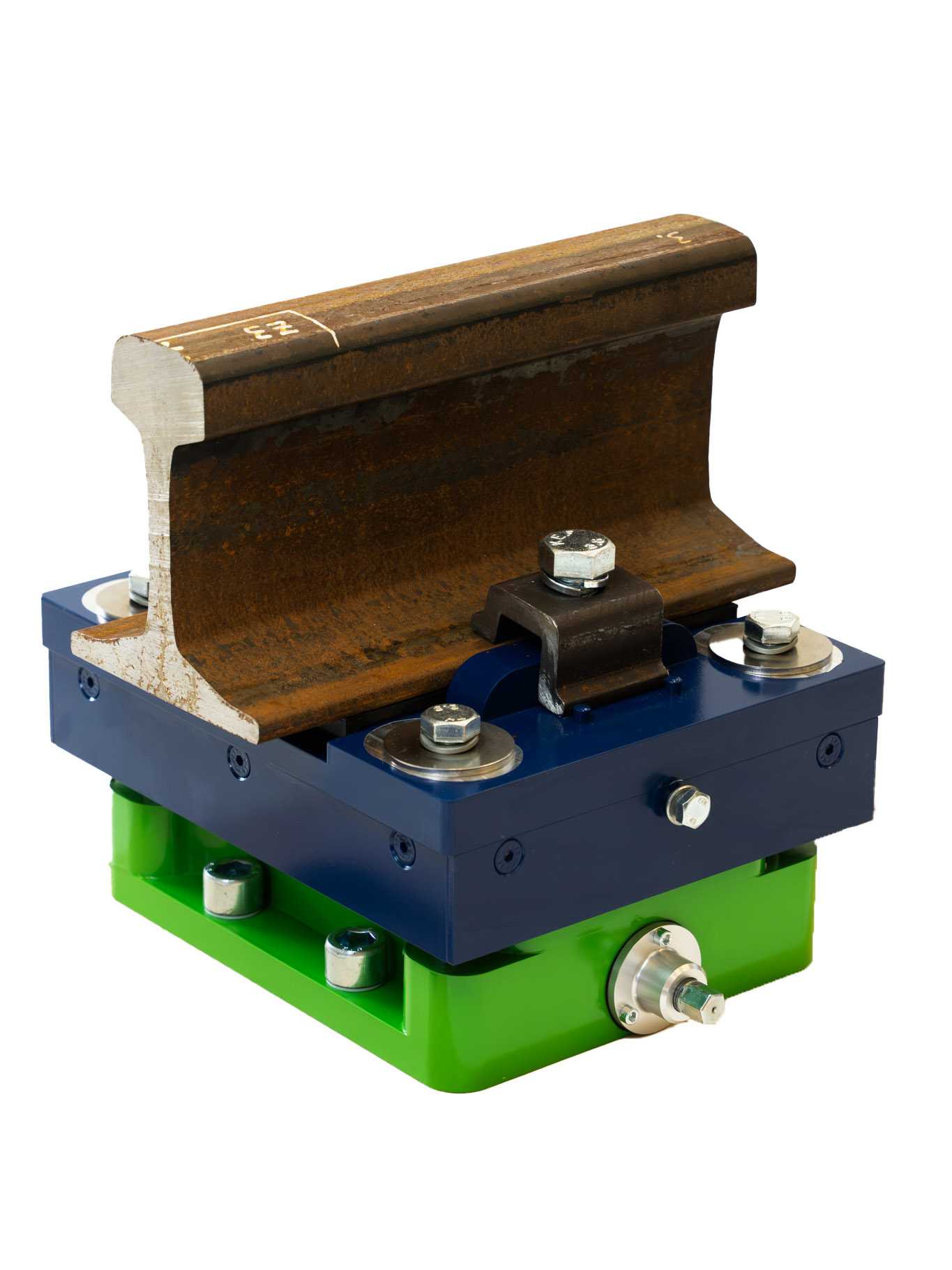

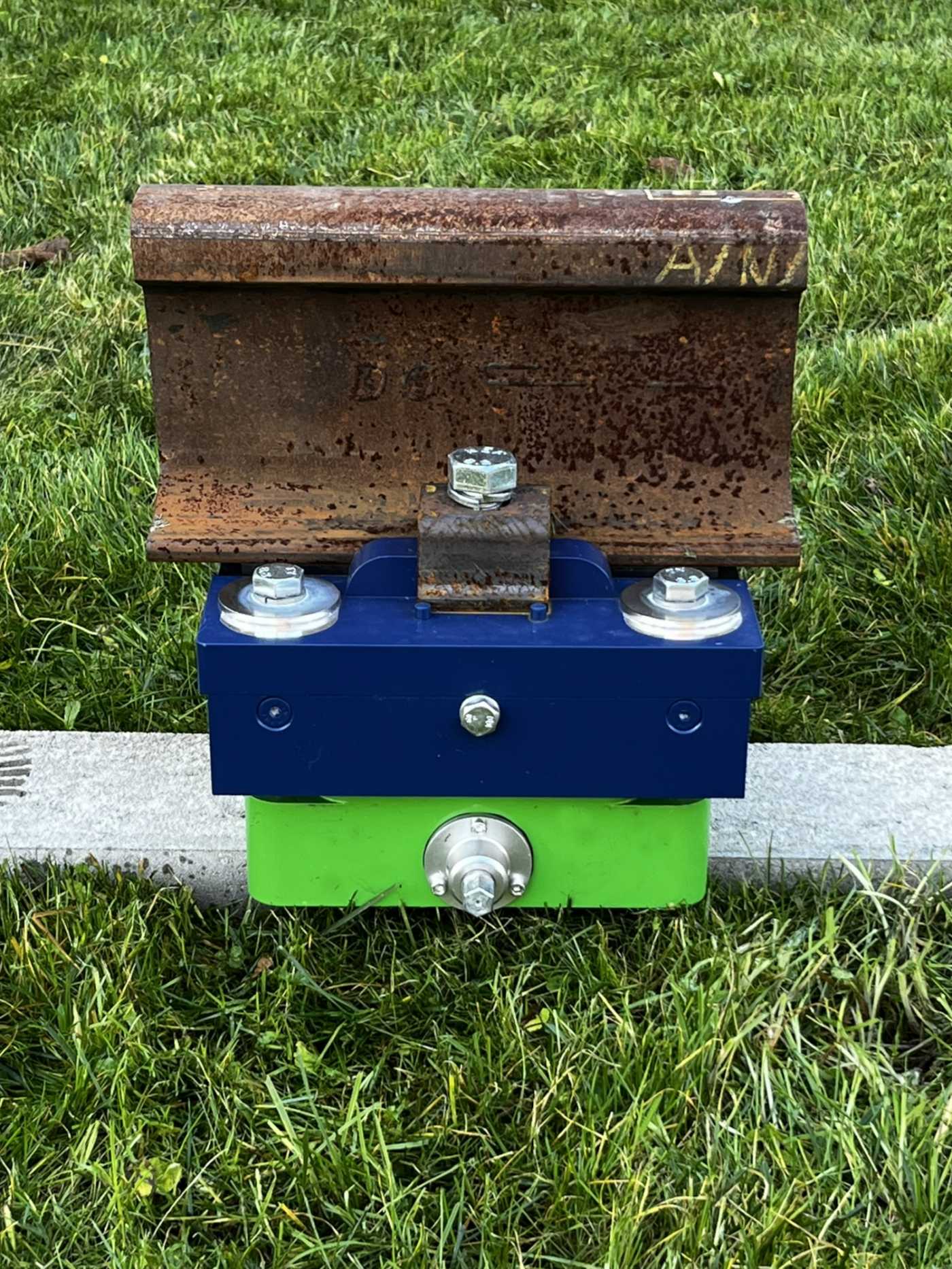

With the newly developed adjustable rail support point, the track position can be adjusted in terms of height and side in a simple, precise and cost-effective manner!

Load cell engines can be integrated as an optional extension to measure and document load curves. The adjustable rail support is maintenance-free and designed for an axle load of 300 kN.

A German patent application has been filed under No. 10 2025 110 202.3.

Technical Data

Dimensions of ribbed plate (WxL)	274x325mm
Height (lowest setting)	145.5 mm
Height (highest setting)	175.5 mm
Maximum stroke	30 mm
Stroke per revolution (360°)	0.3 mm
Lateral adjustment	+/- 10 mm
Rail types	According to customer requirements
Fastening system	2 x clamping plates Kp06 + 2x M22 and spring washers
Maximum load capacity	150 kN
Sensors (optional)	2 x integrated load cells
Weight per unit	approx. 60 kg
Material	EN-GJS-600-3
